Hose Stud with SKF or BEKA Groove
Product Information
Hose stud presisi untuk koneksi SKF atau BEKA groove
Application
Fitting ini memiliki groove khusus dari merek SKF atau BEKA untuk memastikan koneksi yang aman serta aliran pelumas yang lancar dan efisien.
Compatibility

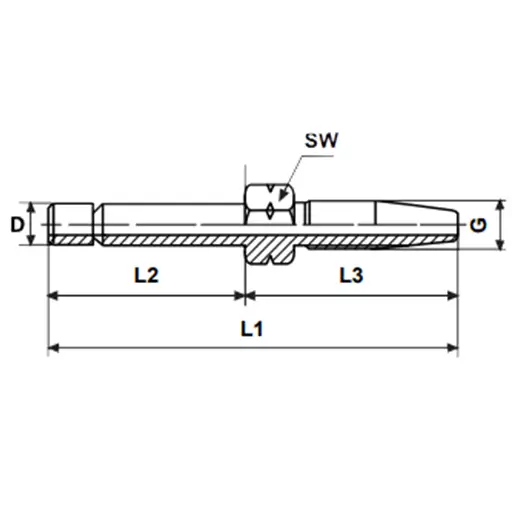

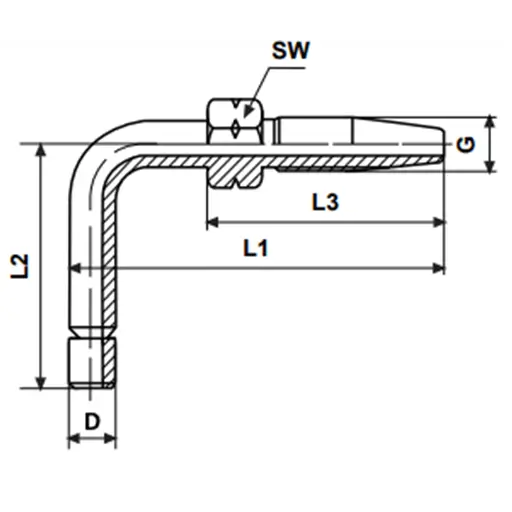

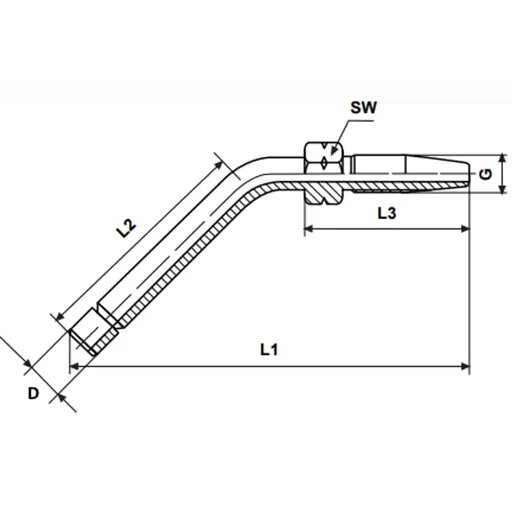

Tersedia varian straight, 45°, dan 90° untuk berbagai konfigurasi jalur hose pada sistem pelumasan pusat.
Variation
Gunakan tabel berikut untuk menyesuaikan diameter, panjang fitting, thread, assembly hose, dan material.
| PN Hydynamic | PN SKF | Description | D | L1 | L2 | L3 | G | Assembly | Material |
|---|---|---|---|---|---|---|---|---|---|
| 2804-0000-0404 | - | Tube stud 4 mm straight | 4 | 61.1 | 30 | 20.7 | M7×0.75 | 4.0×8.6 | Zinc-nickel |
| 2804-0000-0604 | 853-380-002 | Tube stud 6 mm straight | 6 | 61.1 | 30 | 31.1 | M7×0.75 | 4.0×8.6 | Zinc-nickel |
| 2804-0002-0604 | - | Tube stud 6 mm straight | 6 | 55.1 | 24 | 31.1 | M7×0.75 | 4.0×8.6 | Zinc-nickel |
| 2804-0000-0804 | - | Tube stud 8 mm straight | 8 | 61.1 | 30 | 31.1 | M7×0.75 | 4.0×8.6 | Zinc-nickel |
| 2804-0000-0606 | 853-390-002 | Tube stud 6 mm straight | 6 | 67 | 22 | 31.1 | M9×1 | 6.3×11.3 | Zinc-nickel |
| 2804-0400-0604 | - | Tube stud 6 mm 45° | 6 | 55.1 | 22 | 45.5 | M7×0.75 | 6.3×11.3 | Zinc-nickel |
| 2804-0403-0604 | - | Tube stud 6 mm 45° | 6 | 68.3 | 25 | 31 | M7×0.75 | 6.3×11.3 | Zinc-nickel |
| 2804-0400-0806 | - | Tube stud 8 mm 45° | 8 | 104 | 30 | 45.5 | M9×1 | 6.3×11.3 | Zinc-nickel |
| 2804-0900-0604 | 853-380-003 | Tube stud 6 mm 90° | 6 | 48 | 30 | 31 | M7×0.75 | 4.0×8.6 | Zinc-nickel |
| 2804-0902-0604 | 853-390-003 | Tube stud 6 mm 90° | 6 | 55.1 | 52 | 31 | M7×0.75 | 4.0×8.6 | Zinc-nickel |
| 2804-0900-0606 | - | Tube stud 6 mm 90° | 6 | 70 | 53 | 45.5 | M9×1 | 6.3×11.3 | Zinc-nickel |
| 2804-0900-0806 | - | Tube stud 8 mm 90° | 8 | 70 | 55 | 45.5 | M9×1 | 6.3×11.3 | Zinc-nickel |
| 2804-0901-0806 | - | Tube stud 8 mm 90° | 8 | 70 | 35 | 45.5 | M9×1 | 6.3×11.3 | Zinc-nickel |
| 2804-2000-0604 | - | Tube stud 6 mm straight | 6 | 61.1 | 30 | 31.1 | M7×0.75 | 4.0×8.6 | SS 316 |
| 2804-2000-0404 | - | Tube stud 4 mm straight | 4 | 61.1 | 30 | 31.1 | M7×0.75 | 4.0×8.6 | SS 316 |
| 2804-2000-0806 | - | Tube stud 8 mm straight | 8 | 67.3 | 22 | 45.5 | M9×1 | 6.3×11.3 | SS 316 |
| 2804-2400-0604 | - | Tube stud 6 mm 45° | 6 | 55.1 | 22 | 31 | M7×0.75 | 4.0×8.6 | SS 316 |
| 2804-2900-0604 | - | Tube stud 6 mm 90° | 6 | 55.1 | 30 | 31 | M7×0.75 | 4.0×8.6 | SS 316 |
| 2804-2901-0604 | - | Tube stud 6 mm 90° | 6 | 55.1 | 20.7 | 31 | M7×0.75 | 4.0×8.6 | SS 316 |
